Vacuum pump

VACUUM PUMP - NASH  904-R2
TEST #: 8850198
MATERIAL: CAST IRON
SHAFT MAT: IRON
MADE IN: USA
WEIGHT: 19 500 LBS
OVERALL DIMENSIONS: 128"X60"X62"
CONDITION: STORE SURPLUS

VACUUM PUMP - NASH - 904 S1
MADE IN USA
WEIGHT: 24260 LBS
CONDITION: USED

VACUUM PUMP - NASH - PREMIER 2160
MADE IN USA
USED

VACUUM PUMP - NASH - H8
MODEL: H8
TEST #: 10812
MADE IN: USA
STORE SURPLUS

PUMP BASE FOR NASH CL3003
MANUFACTURER: INDUSTRIAL MANUFACTURING
WELDED BASE WITH ADJUSTEMENT FOR ELECTRIC MOTOR
CONDITION: USED

VACUUM PUMP - SOMARAKIS - 3028-3
MATERIAL: CAST IRON
RPM: 405
POSITION: 1
INLET: 8"
OUTLET: 6"
SHAFT DIA: 4"
CL3003 EQUIVALENT
MADE IN: USA
WEIGHT: 5000LB
SERIAL #: 00V665
OVERALL DIMENSIONS: 70"X53"X72"
CONDITION: USED

VACUUM PUMP - NASH - CL 2002
TEST #: 03746767
MATERIAL: CAST IRON
POSITION: 1
INLET: 6"
OUTLET: 6"
SHAFT DIA: 3.625"
CONDITION: USED

VACUUM PUMP - NASH - CL 2002
TEST #: 04612151
MATERIAL: CAST IRON
POSITION: 1
INLET: 6"
OUTLET: 6"
SHAFT DIA: 3.625"
CONDITION: USED

VACUUM PUMP - SOMARAKIS - 2523-2
MATERIAL: CAST IRON
RPM: 550
POSITION: 1
INLET: 6"
OUTLET: 6"
SHAFT DIA: 3.625"
CL2002 EQUIVALENT
MADE IN: USA
WEIGHT: 5000LB
OVERALL DIMENSIONS: 60"X48"X54"
SERIAL #: 00V658
CONDITION: USED

OIL LESS VACUUM PUMP - BECKER - VTLF 500SK
TYPE: VTLF 500 SK
SPPED: 980-1160 RPM
INLET CAPACITY: 500-600 M3-H
VACUUM: 100-150 MBAR
YEAR: 2006
NO: 2125443

MOTOR - LAFERT - 25HP
25HP
1165RPM
575V - 3PH - 60HZ - 24.5A
TEFC
TYPE: LNA180LA6

CONDITION: USED

DRY VACUUM PUMP - BUSCH - MI 1502 BV
MANUFACTURER: BUSCH
MODEL: MI 1502 BV
50-60HZ
500-580M3-H
250HPA

MOTOR OPTIMHEPLUS WESTINGHOUSE 15HP
INVERTER DUTY MOTOR
575V - 13.3A
3P - 60HZ
3520RPM
FRAME: 256T
ENCLOSURE: TEFC
DESIGN: B
CONDITION: USED

DRY VACUUM PUMP - BUSCH - MI 1502 BV
MANUFACTURER: BUSCH
MODEL: MI 1502 BV
50-60HZ
500-580M3-H
250HPA
.
MOTOR OPTIMHEPLUS WESTINGHOUSE 15HP
INVERTER DUTY MOTOR
575V - 13.3A
3P - 60HZ
3520RPM
FRAME: 256T
ENCLOSURE: TEFC
DESIGN: B
DCONDITION: USED

VACUUM PUMP - NASH - CL1002
TEST #: 06641111
CAST IRON
POSITION: 4
INLET: 5"
OUTLET: 4"
SHAFT DIA: 2.750"
CONDITION: USED

VACUUM PUMP - NASH - CL1001
CAST IRON
POSITION: 4
INLET: 5"
OUTLET: 4"
SHAFT DIA: 2.750"
CONDITION: USED

VACUUM PUMP - NASH - CL1001
C.IRON
INLET: 5"
OUTLET: 4"
SHAFT DIA: 2.750"
CONDITION: USED

PUMP VACUUM - BECKER - VT 4.16
TYPE: VT 4.16
PART #: 2758416
FREQUENCY: 50/60 HZ
SPEED: 1420/1700 MIN -1
POWER REQUIRED: 0.55/0.70 KW
INLET CAPACITY: 16/19 M3/HR
MAX VACUUM: 150/150 MBAR
YEAR: 2013

MADE IN GERMANY
WEIGHT: 40 LBS
OVERALL DIMENSIONS: 18"X10"X10"
OVERALL CONDITION: STORE SURPLUS

VACUUM PUMP - NASH - CL 9002
TEST #: 14B11577
CAST IRON
POSITION: 1
INLET: 14"
OUTLET: 14"
MADE IN: USA
WEIGHT: 18 000 LBS
OVERALL DIMENSIONS: 8'X8'X8'
CONDITION: USED

VACUUM PUMP - NASH - CL 9002
TEST #: 65 2677
CAST IRON
POSITION: 1
INLET: 14"
OUTLET: 14"
MADE IN: USA
WEIGHT: 18 000 LBS
OVERALL DIMENSIONS: 8'X8'X8'
CONDITION: USED

VACUUM PUMP - NASH - CL 9002
CAST IRON
POSITION: 1
INLET: 14"
OUTLET: 14"
SHAFT DIA: N/A
MADE IN: USA
WEIGHT: 18 000 LBS
OVERALL DIMENSIONS: 8'X8'X8'
CONDITION: USED

VACUUM PUMP - NASH - CL6003
CONDITION: USED

VACUUM PUMP - DEKKER - DV0080B-KA3
NO MODELE: DV0080B-DA3
NO SERIE: 080903S05
COUPLE WITH 5HP MOTOR - 1750RPM
MAX VACUUM: 29"HG
INLET: 1.5"
OUTLET: 1.5"
OVERALL CONDITION: USED

VACUUM PUMP - NASH - CL 701
ARMSTRONG - AP7-1
INLET: 4"
OUTLET: 3"
TEST: AHP 1207-08
ACA #: 1207-08
MADE IN USA
WEIGHT: 1100 LBS
OVERALL DIMENSIONS: 46"X30"X32"
CONDITION: USED

VACUUM PUMP - NASH - CL 701
ARMSTRONG - AP7-1
TEST #: AHP1251-10
SHAFT DIA: 2.125"
INPUT: 4"
OUTPUT: 3"
ANNEE: 2011
MADE IN USA
WEIGHT: 895 LBS
OVERALL DIMENSIONS: 41"X20"X23"
CONDITION: STORE SURPLUS

VACUUM PUMP - NASH - CL4002
D.IRON - FULL CLAD
INLET: 10"
OUTLET: 10"
YEAR: 1988
SHAFT DIA: 5"
OVERALL DIMENSIONS: 84"X48"X48"
CONDITION: USED

*CURRENTLY WITHOUT CONE*

VACUUM PUMP - SIEMENS ELMO-F
SIZE: 2BE1705-1BY30
DOUBLE EXTENDED SHAFT
TEST #: 518957
MATERIAL: C.IRON
POSITION: 4
INLET: 14"
OUTLET: 14"
SHAFT DIA: 7.875"
MADE IN GERMANY
WEIGHT: 25500 LBS
OVERALL DIMENSIONS: 142.5"X82"H X83"L
CONDITION: USED

VACUUM PUMP - SIEMENS ELMO-F
SIZE: 2BE1605-1BY30
DOUBLE EXTENDED SHAFT
TEST #: 518964-1982
MATERIAL: C.IRON
POSITION: 4
INLET: 12"
OUTLET: 12"
SHAFT DIA: 7"
MADE IN GERMANY
WEIGHT: 17500 LBS
OVERALL DIMENSIONS: 122"X71"H X71"L
CONDITION: USED

VACUUM PUMP - SIEMENS ELMO-F
SIZE: 2BE1606-1BY30
DOUBLE EXTENDED SHAFT
TEST #: 518966-1982
MATERIAL: C.IRON
POSITION: 4
INLET: 12"
OUTLET: 12"
SHAFT DIA: 7"
MADE IN GERMANY
OVERALL DIMENSIONS: 124"X72"H X72"L
CONDITION: USED

VACUUM PUMP - SIEMENS ELMO-F
SIZE: 2BE1605-1RY30
DOUBLE EXTENDED SHAFT
TEST #: 518962-1982
MATERIAL: C.IRON
POSITION: 4
INLET: 12"
OUTLET: 12"
SHAFT DIA: 7"
MADE IN GERMANY
WEIGHT: 17500 LBS
OVERALL DIMENSIONS: 122"X71"H X71"L
CONDITION: USED

VACUUM PUMP - NASH CL4002
TEST #: 78S0C52
IRON
400RPM
INLET: 10"
OUTLET: 8"
SHAFT DIA: 5"
MADE IN USA
WEIGHT: 8500 LBS
OVERALL DIMENSIONS: 84"X55"X55"
CONDITION: REFURBISHED

VACUUM PUMP - NASH CL3001
TEST #: 82N0025
450RPM
INLET: 8"
OUTLET: 6"
MADE IN BELGIUM
CONDITION: USED

VACUUM PUMP, GARDNER DENVER, SAP 220, BLOWER
MODEL: SAP 220
CONNECTION:
INLET: 2" NPT
OUTLET: 2" NPT
3.5HP
575V
60HZ
+240 - 250 mbar
275 m³/h (max)
NEW STORE SURPLUS

VACUUM PUMP - NASH - APSC-3
TEST: AHP1168-07
INLET: 3.125"
OUTLET: 4"
SHAFT: 1.5"
MADE IN ALABAMA

VACUUM PUMP - NASH SC6
TEST NUMBER: 95Y0270
INPUT: 5.750"
OUTPUT: 4"

VACUUM PUMP - NASH SC6
S/S
1170 RMP
SHAFT DIA: 3.375"
INLET: 6"
OUTLET: 4"
TEST #: 98Y0019
OVERALL DIMENSIONS: 45"X24"X27"

VACUUM PUMP, NASH, CL-402
TEST: 93E8818
INLET: 3"
OUTLET: 2.5"
CENTER TO CENTER INLET AND OUTLET: 18"

VACUUM PUMP, NASH, CL-701
TEST: MC 01904
PARTS MISSING: 1 CONE, BEARINGS
ROTOR AND PUMP NEED REFURBISHING

VACUUM PUMP - NASH CL1001
TEST #: 81U4562
MATERIAL: IRON
820 RPM
POSITION: 4
SHAFT DIA: 2.750"
INLET: 5"
OUTLET: 4"
MADE IN: USA
POIDS: 1400 LBS
OVERALL DIMENSIONS: 52"X26"X28"

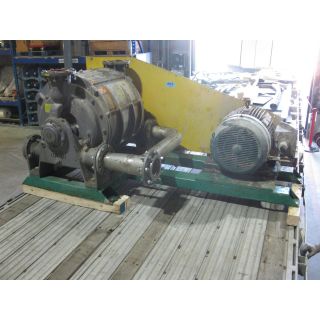

VACUUM PUMP - NASH CL2001
MODEL #: CL-2001
TEST #: 14BH6447
INPLET: 6"
OUTLET: 6"

MOTOR - AC - BALDOR RELIANCE
75HP
1780RPM
FRAME: 365T
460 VOLTS
ENCLOSURE: TEFC
INSULATION CLASS: F
3 Ph / 60 HZ / SF: 1.15
MODEL #: ECP84316T-4

VACUUM PUMP - NASH CL6002
TEST: 07BH4261
RPM: 327

CONDITION: REFURBISHED

BODY: CLADDED SS
HEADS: DI/SS - SEMI-CLADDED
CONES: CLADDED SS
ROTOR: D.IRON
SHAFT: IRON

SEE ATTACHED DOCUMENT FOR CAPACITY AND DIMENSIONS

VACUUM PUMP NASH CL 6002G
S/S 316 CLADING: BODY, CONES, HEADS
SHAFT DIAMETER: 2.875"
POSITION 4
TEST #: MC 01672
Ratio: 3.67 / 1 (for a 1200 rpm motor)
DRIVE GEAR: 36 TEETH
DRIVEN GEAR: 132 TEETH

VACUUM PUMP, NASH, CL 6002G
SHAFT DIAMETER: 2.875"
Ratio: 3.67 / 1 (for a 1200 rpm motor)
Drive gear: 36 tooth
Driven gear: 132 tooth
BEARING NEED TO BE CHANGE

VACUUM PUMP NASH CL 6002G
TEST #: 69C-0105
Ratio: 3.67 / 1 (for a 1200 rpm motor)
DRIVE GEAR: 36 TEETH
DRIVEN GEAR: 132 TEETH

VACUUM PUMP - NASH H9
YEAR: 2007
PART #: 81U3645
REBUILT BY NASH S/N: 640896
MADE IN: USA

SEPARATOR TANK FOR 904 VACUUM PUMP
Control Water Quantity in Liquid Ring Vacuum Pumps
CLARK - 2042003020
DIM:
54" DIA
78" HIGHT,
CARBON STEEL
INLET: 24",
OUTLET: 18"
DRAIN: 6"
